Blower Motor - Description

DESCRIPTION

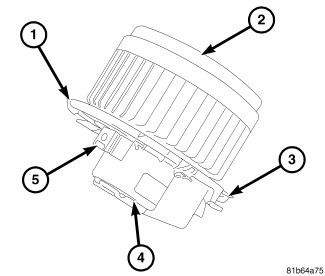

The blower motor is mounted to the bottom of the HVAC housing, on the passenger side of the vehicle. The blower motor assembly is a squirrel type blower cage (2) connected to a 12 volt Direct Current (DC) motor, located within a plastic housing (4). The blower motor has an integral wire harness bracket (1), three mounting provisions (3) and a wire connector receptacle (5).

The blower motor can be accessed for service from underneath the instrument panel.
