Floor Console Duct - Removal

REMOVAL





1. Remove the center floor console Floor Console - Removal.

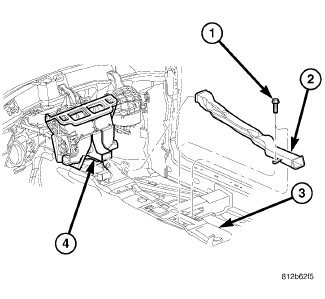

2. Remove the two fasteners (1) that secure the floor console duct (2) to the center floor panel (3).
3. Disconnect the floor console duct from the floor distribution duct (4) and remove the floor console duct from the vehicle.
