Heat Shield - Installation
INSTALLATION

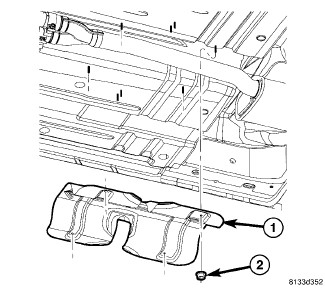

1. Position the heat shields (1).
2. Install the nuts (2). Tighten the nuts (2) to 10 Nm (98 in. lbs.).
3. Install the floor pan mid support bracket.
4. Lower the vehicle.
INSTALLATION
1. Position the heat shields (1).
2. Install the nuts (2). Tighten the nuts (2) to 10 Nm (98 in. lbs.).
3. Install the floor pan mid support bracket.
4. Lower the vehicle.
