Dual Muffler/Resonator

DUAL MUFFLER/RESONATOR

3.6L





1. Raise the vehicle.

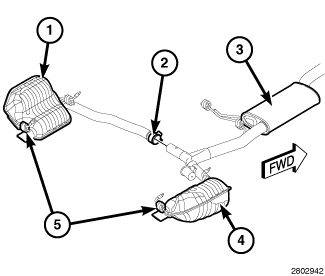

2. Loosen the pipe strap clamp (2) for the left side resonator pipe.
3. Remove the isolators (5) at the left side resonator.
4. Remove the left side resonator and tailpipe assembly (1).
5. Loosen the front strap clamps at the catalytic converter down pipes.
6. Remove the isolator to the muffler/resonator assembly.
7. Remove the right side muffler/resonator assembly.

5.7L/6.4L





1. Raise the vehicle.

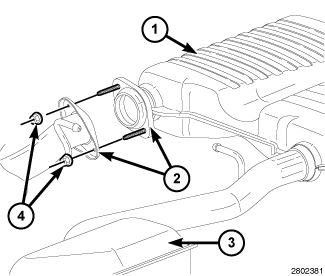

2. Remove the two mounting nuts (4) at the muffler flange (2).
3. Remove the isolators to the left side resonator.
4. Remove left side resonator/tailpipe assembly from the muffler flange (2).
5. Loosen the front strap clamps at the catalytic converter down pipes.
6. Remove the isolators to the muffler/resonator assembly.
7. Remove the right side muffler/resonator (1) assembly.
