Exhaust Manifold: Specifications

EXHAUST MANIFOLD

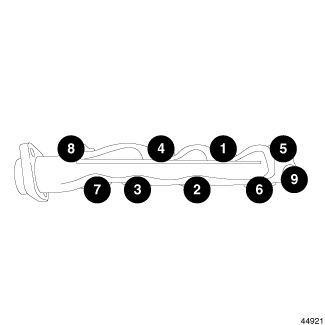

LEFT SIDE:

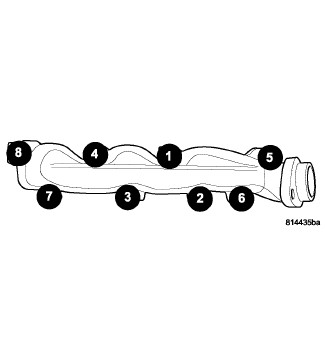

RIGHT SIDE:






Install the remaining exhaust manifold retaining bolts
Tighten the bolts 25 Nm (18 ft. lbs.)
Install the heat shield.
Tighten nuts 8 Nm (70 in. lbs.)
