Engine Oil Pressure: Testing and Inspection

CHECKING ENGINE OIL PRESSURE

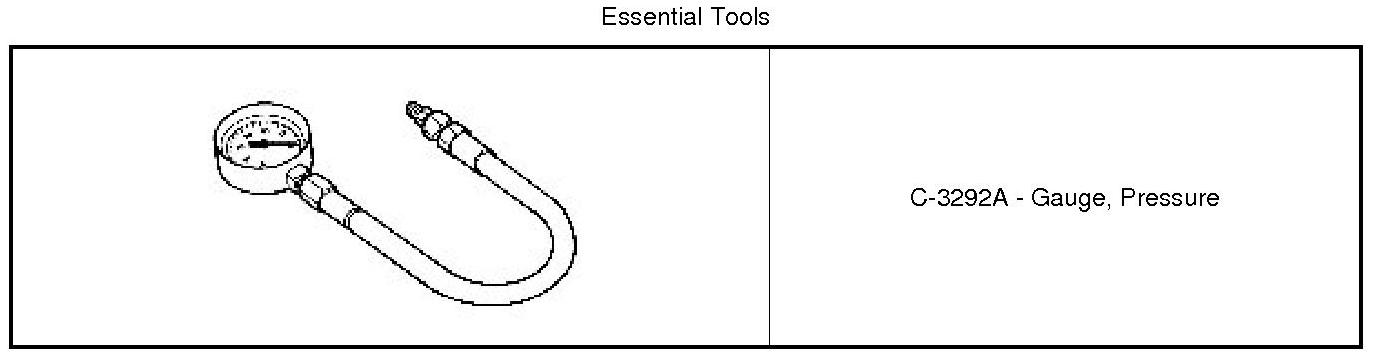

Special Tools:






1. Remove the oil pressure sending unit and install gauge assembly.
2. Run the engine until thermostat opens.
3. Oil Pressure:
- Curb Idle-25 kPa (4 psi) minimum
- 3000 rpm-170 - 758 kPa (25 - 110 psi)

4. If oil pressure is 0 at idle, shut off engine. Check for a clogged oil pick-up screen or a pressure relief valve stuck open.
