Accessory Drive Idler Pulley






5.7L/6.4L










1. Remove accessory drive belt Accessory Drive Belt Tensioner - Removal.

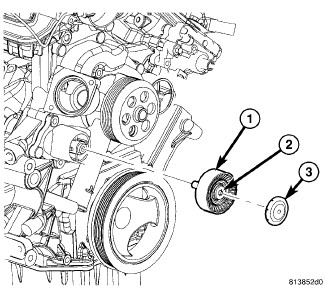

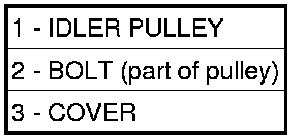

2. Remove cover (3).
3. Remove bolt (2) and idler pulley (1).
