Sunroof / Moonroof Switch: Testing and Inspection

DIAGNOSIS AND TESTING - SUNROOF SWITCH





1. Disconnect and isolate the battery negative cable.
2. Remove the overhead console from the headliner. Overhead Console - Removal.
3. Disconnect the overhead wire harness connector from the overhead console connector receptacle.

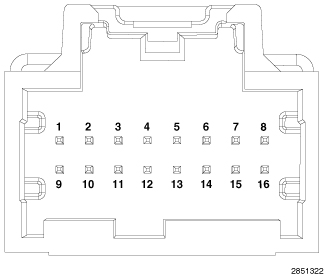

4. Using a multimeter, test the continuity between the terminals of the overhead console connector receptacle while actuating the power sunroof switch as shown in the Sunroof Switch Tests table.





5. If the switch fails any of the tests, replace the overhead console and the switch as a unit.
