Vented Seat Switch - Description

DESCRIPTION

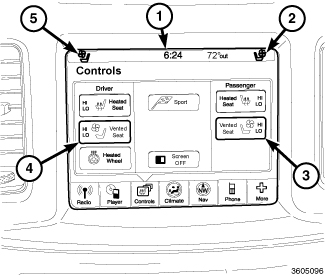

The switches (3 and 4) for the optional front vented seat system are located in the U-Connect Touch (TM) screen module (1), at the center of the instrument panel. The vented seat system allows the driver and front seat passenger to select from two different speed of electrical seat ventilation (HI and LO). When the vented seat switches are pressed on, each switch illuminates either HI or LO, and an International Standards Organization (ISO) symbol (2 and 5) appears at the top of the U-Connect Touch (TM) screen module. Pressing a vented seat switch once will select HI. Pressing the same switch a second time will select LO. Pressing the switch a third time will turn the ventilating function of the seat off.
