Second Row Seats

INSTALLATION

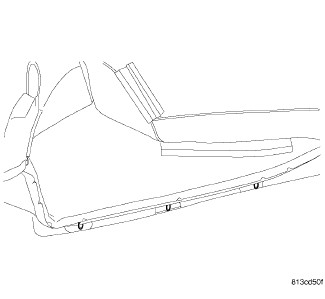

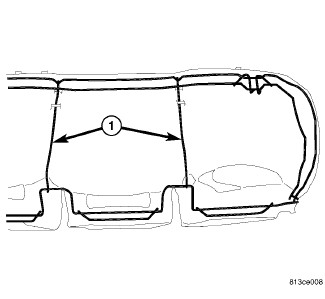

1. Install hog rings attaching cushion support, if remove.





2. Place seat cover into position on the foam.

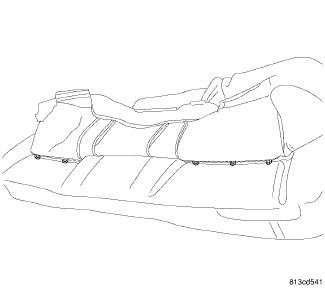

3. Install the attaching hog rings on the inner side of the seat cover and cushion.

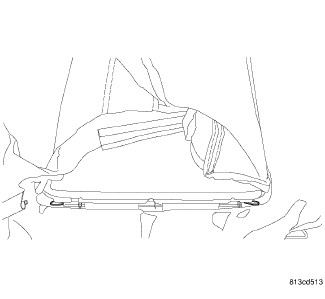

4. Install hog rings on the on the front side the seat cover.

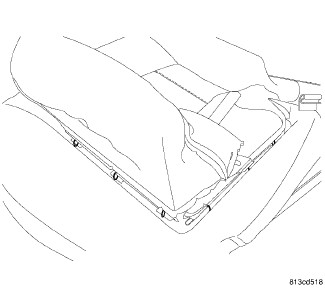

5. Install hog rings on the outer side of the seat cover. Check for seat cover wrinkles.





6. Install the hog rings on the rear side of seat cover.
7. Repeat the operation for the other side of cushion.





8. Position seat cover in to position on the foam and check for seat cover wrinkles.





9. Connect the J-straps, and smooth out seat cover.
10. Steam wrinkles from seat cushion, if necessary.

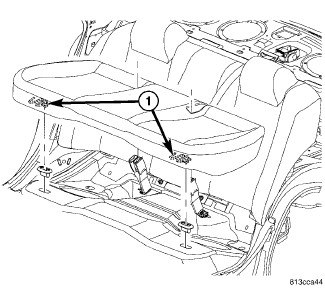

11. Place seat cushion (4) into position.
12. Engage retainer loops into cup on floor kick up.
13. Push downward at forward edge at each retainer loop of the rear seat cushion to engage retainers.
