Second Row Seat Back Striker - Installation

INSTALLATION

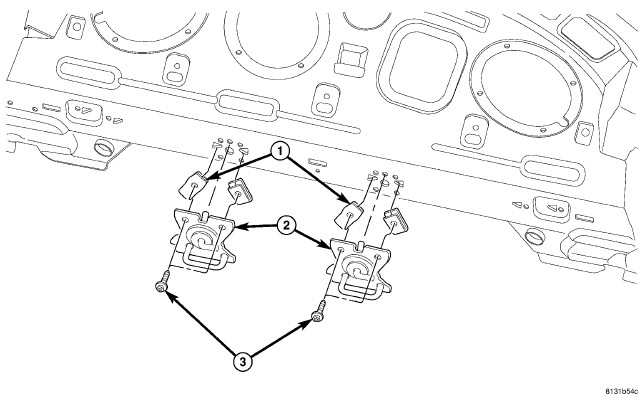

1. Spring nut(s) (1) replace, if necessary.
2. Place the sedan back seat striker (2) into position and Install attaching screws (3).

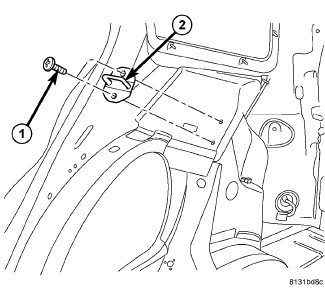

3. Place the wagon back seat striker (2) into position and Install attaching screws (1).

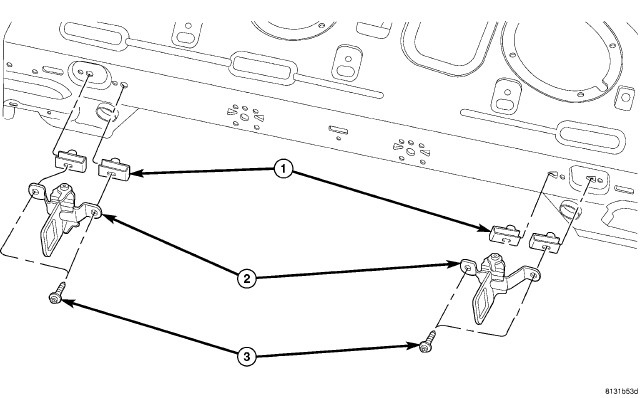

4. Spring nut(s) (1) replace, if necessary.
5. Place the (Export) sedan back seat striker (2) into position and Install attaching screws (3).
