Sunroof Glass - Installation

INSTALLATION






CAUTION: Charger sunglass seal is serviceable. 300 / Magnum seal is not serviceable.
Position glass panel on to mechanism lift arms.

CAUTION: Verify that the retaining tabs are located on the INSIDE of the guide mechanism arms.

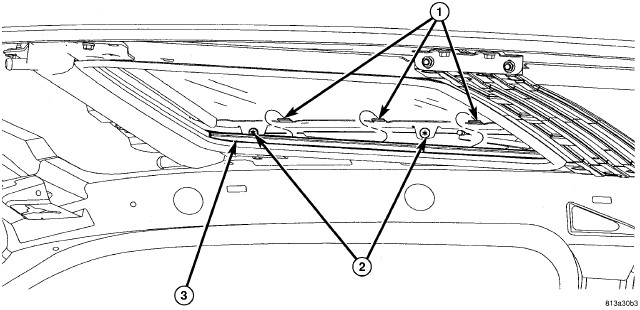

1. Start the attaching screws (2).
2. Connect a 12v power supply and verify that the sunroof is in the closed position.
3. Adjust sunroof glass to fit flush with roof line Adjustments.
4. Tighten the screws to 5.5 Nm (49 in. lbs.).

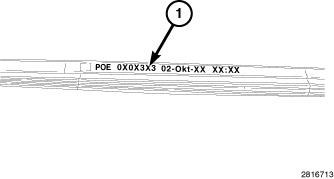

5. Locate the top of the mechanism cover by printed text (1).

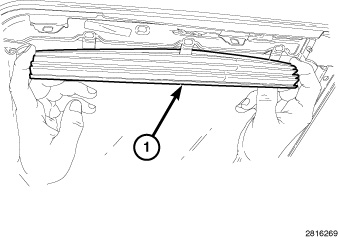

6. Position the mechanism covers (1) over the glass tabs between the locating features and seat fully by pushing the top edges of the cover outboard.
7. Verify sunroof operation and alignment.
