Sunroof Drain Tube - Installation

INSTALLATION

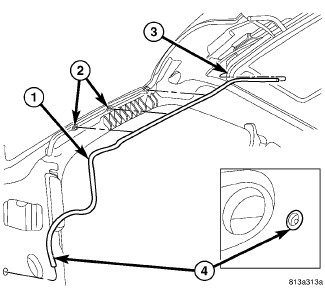

FRONT HOSES

1. Position the lower portion through the grommet in the body (4).
2. Connect the new drain hose (1) to the sunroof housing (3) and test drainage.
3. Position the hose (1) into the support clips (2).
4. Install headliner Headliner - Installation.

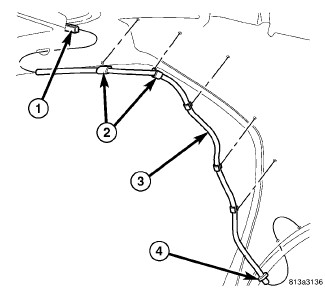

REAR HOUSING HOSE

1. Install the rear hose (3) and seat the push pin fasteners (2) fully.
2. Position the lower portion through the grommet in the body (4).
3. Connect the new drain hose (3) to the sunroof housing (1) and test drainage.
4. Install headliner Headliner - Installation.
