Sunroof Drain Channel - Installation

INSTALLATION






NOTE: Left side shown, right side typical.

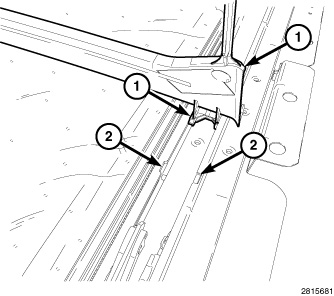

1. Carefully position the drain channel (1) one side at a time into the notches (2) in the track assy. Once positioned, push down until it engages into the track assy. Repeat steps on the opposite side and slide the drain channel assy rearward.

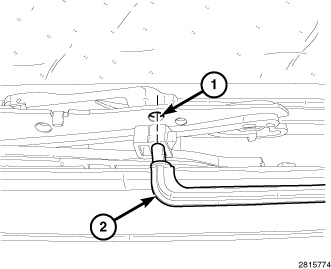

2. Install the drain channel arms (2) into the mechanism holes (1) one at a time.

CAUTION: Do not push the guide arms at the same time or you could break the guide mechanism. Do not use excessive force to install.

3. Install the sunroof glass. Sunroof Glass - Installation
