Trunk

TRUNK





1. Disconnect and isolate the battery negative cable.

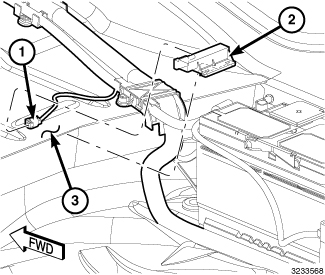

2. Fold up and move the spare tire cover and trunk carpet aside far enough to access the trunk floor (3) where it meets the forward edge of the spare tire well. . Trunk Carpet - Removal
3. Disconnect the body wire harness connector (1) from the Low Frequency (LF) antenna (2) connector receptacle.
4. Pull the antenna and retainer unit rearward off of the flange at the front of the spare tire well.
5. Remove the antenna and retainer from the trunk as a unit.
