Rear Fascia Bracket

REAR FASCIA BRACKET





1. Disconnect and isolate the battery negative cable.
2. Remove the rear fascia from the vehicle. Rear Bumper Fascia - Removal.

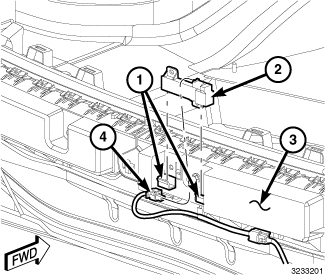

3. Disconnect the wire harness connector (4) from the connector receptacle for the Low Frequency (LF) antenna (2) located in a pocket near the center of the rear fascia bracket (3).
4. Unsnap the antenna from the retainers (1) integral to the rear fascia bracket.
5. Remove the LF antenna from the vehicle.
