B-Pillar Trim Panel - Removal

REMOVAL

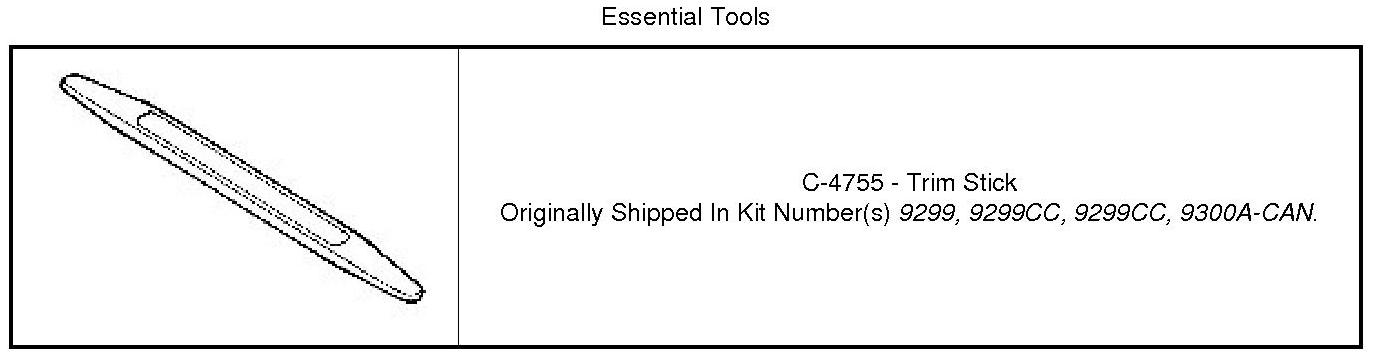

Special Tools:










1. Detach the seat belt at the seat, Seat Belt Retractor - Removal.
2. Detach the front and rear door scuff trim panels at the B-pillar (1).
3. Using trim stick or equivalent, starting at the bottom of the B-pillar (1) and working upward, disengage the retaining clips.
4. Remove the B-Pillar (1).
