B-Pillar Trim Panel - Installation

INSTALLATION

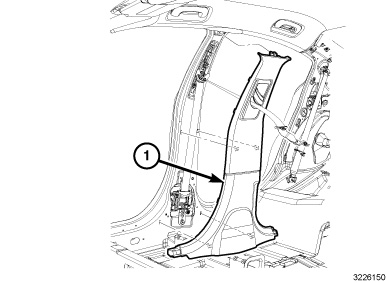

1. Align and position the B-Pillar (1).
2. Starting at the top of the B-pillar (1) and working downward, hand tap to engage the retaining clips.
3. Re-attach the front and rear door scuff trim panels at the B-pillar (1).
4. Re-install the seat belt at the seat, Seat Belt Retractor - Installation.
