Upper

UPPER

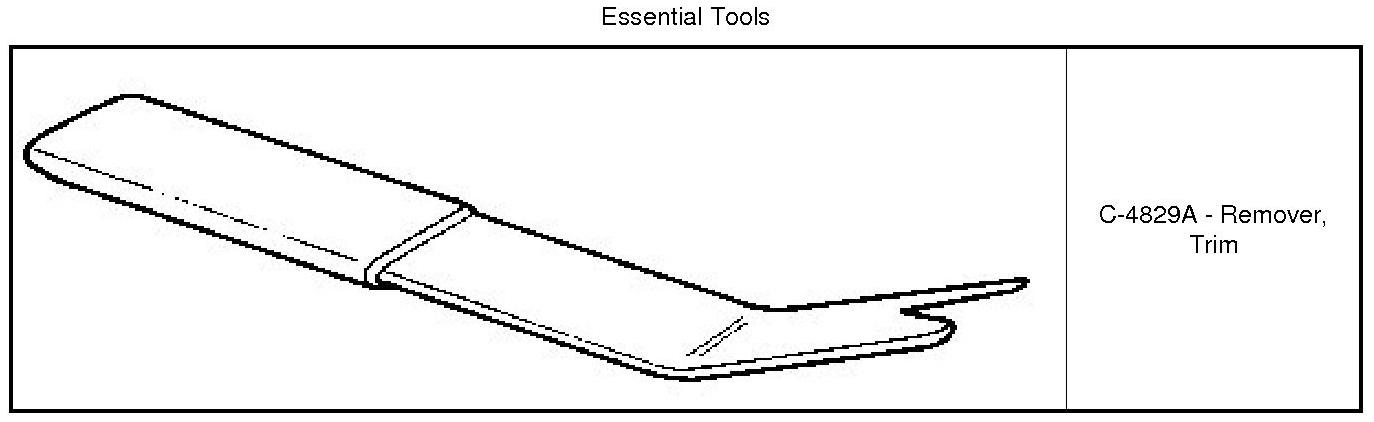

Special Tools:

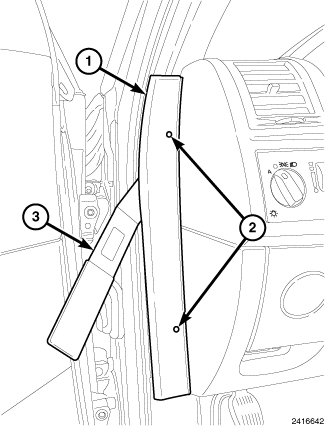

1. Using trim tool or equivalent (3), directly below the lower retaining clip (2), release the clip.

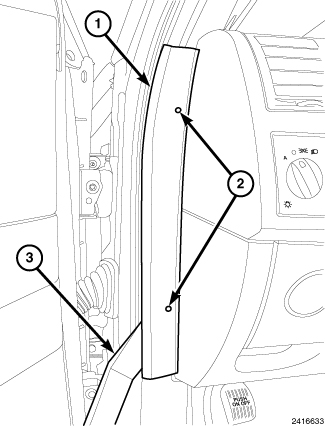

2. Using trim tool or equivalent (3), directly below the upper retaining clip (2), release the clip and remove the upper cowl trim panel (1).
