Hood Striker - Installation

INSTALLATION

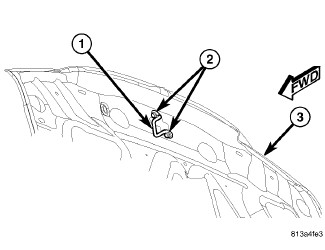

1. Position the latch striker (1) to the underside of the hood (3).
2. Install and tighten the two screws (2) that secure the striker to the hood inner reinforcement. Tighten the screws to 28 Nm (21 ft. lbs.).
3. Close the hood.
