Without Paddle Shift

REMOTE RADIO SWITCH WITHOUT PADDLE SHIFT

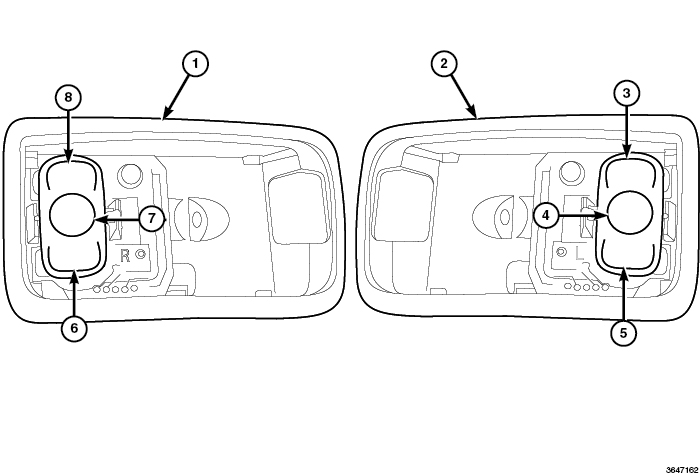

The remote radio switches are mounted to the back of the steering wheel. Each switch consists of a remote radio switch and a paddle shift switch.

The right switch (1) consists of the following functions:

- Volume "UP" (8)
- Mode (7)
- Volume "DOWN" (6)

The left switch (2) consists of the following functions:

- Seek "UP" (3)
- Preset (4)
- Seek "DOWN" (5)

For information on the operation of the remote radio and paddle shift switches Without Paddle Shift
