Rear Shelf

REAR SHELF

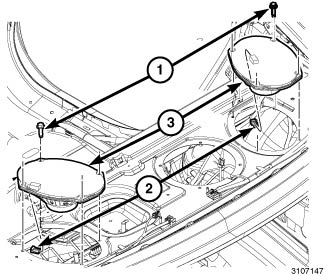

NOTE: 6X9" shown, 6.5" and 3.5" Unity speaker similar.

1. Connect the speaker electrical connector (2).
2. Position speaker (3) into the rear shelf.
3. Install the speaker retainers (1).
4. Install the rear shelf cover Rear Shelf Panel - Installation.
5. Connect the negative battery cable.
