Rear Door





REAR DOORS





1. Connect the speaker electrical connector.

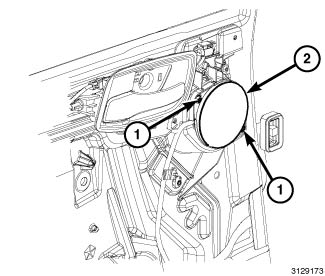

2. Position the speaker (2) into the door and install the speaker retainers (1).

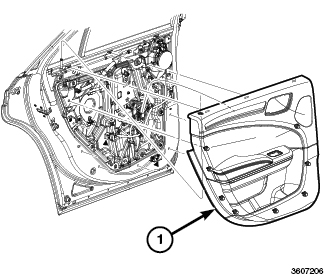

3. Install the door trim panel (1) Rear Door Trim Panel - Installation.
4. Connect the IBS/negative battery cable assembly to the negative battery post.
