Radio Antenna Module - Installation

INSTALLATION

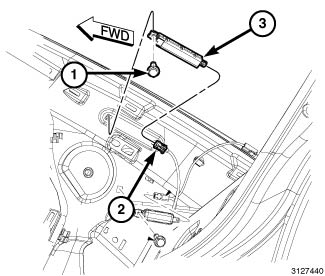

1. Position module into place.
2. Install and tighten mounting fasteners (1).
3. Connect the antenna module (2).
4. Install the C-pillar upper trim.
5. Connect battery negative cable.
