Rear Washer Check Valve - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.

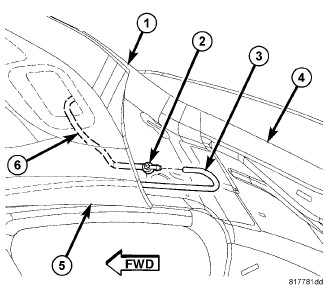

2. Partially remove the quarter trim from the right upper D-pillar (4). Rear Quarter Trim Panel - Removal.
3. Pull the headliner (5) away from the upper liftgate opening header (1) far enough to access and disconnect the liftgate washer supply hose (6) and the headliner washer supply hose (3) from the barbed nipple on each side of the check valve (2).
4. Remove the check valve.
