Rear Door Glass Channel - Installation
INSTALLATION

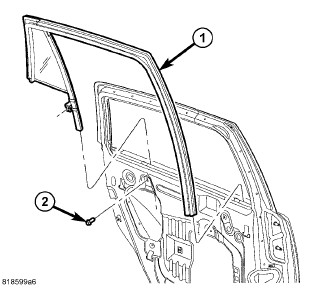

1. Lower the glass run (1) into glass run door channel.
2. Install the fastener (2), tighten to 5 N-m (44 in. lbs.).
3. Install the rear door carrier plate.Rear Door Carrier Plate - Installation.
INSTALLATION
1. Lower the glass run (1) into glass run door channel.
2. Install the fastener (2), tighten to 5 N-m (44 in. lbs.).
3. Install the rear door carrier plate.Rear Door Carrier Plate - Installation.
