Front Door Glass - Installation






INSTALLATION

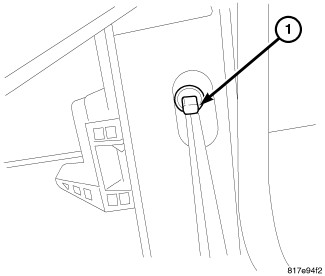

1. Insert glass into glass channel and slide down ensuring access holes (1) align with snaps.

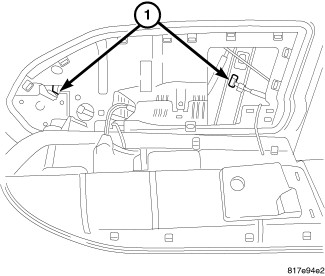

2. Ensure access holes properly lock into snaps (1).
3. Install bolster. Front Door Trim Panel Bolster - Installation
