Shift Lever - Removal
REMOVAL

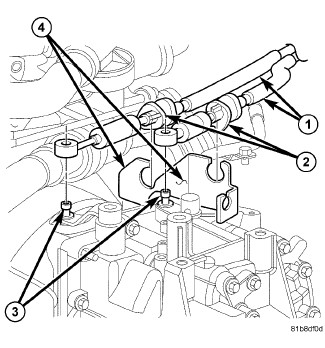

1. Disconnect select cable (2) from select lever (3) and cable bracket.
2. Using a pin punch, remove the select roll pin from lever.
3. Pull up and remove the select lever from the transaxle select shaft.
REMOVAL
1. Disconnect select cable (2) from select lever (3) and cable bracket.
2. Using a pin punch, remove the select roll pin from lever.
3. Pull up and remove the select lever from the transaxle select shaft.
