Shift Shaft Bushing(s) - Removal
REMOVAL

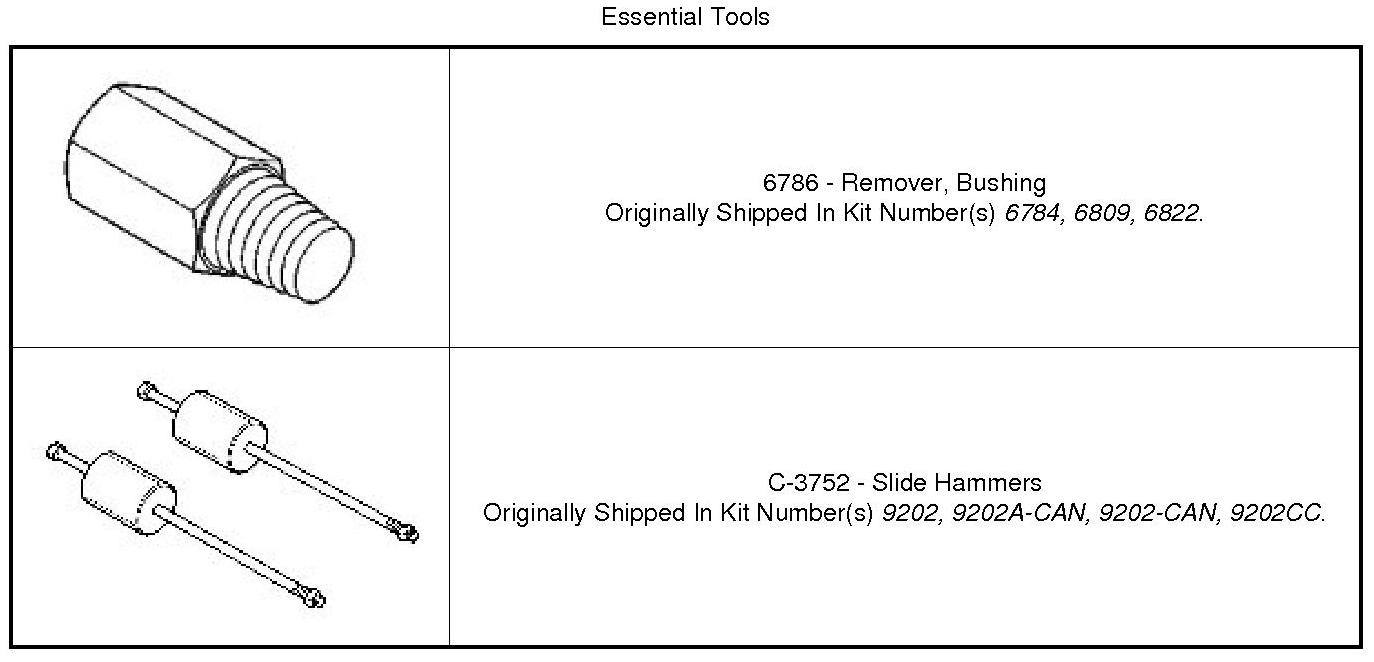

Special Tools:
1. Remove shift shaft using procedure.

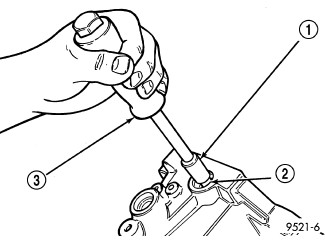

2. Thread Remover (1)(Figure 1) into bushing.
3. Install slide hammer (3) onto tool and remove bushing (2) using slide hammer
.
REMOVAL
Special Tools:
1. Remove shift shaft using procedure.
2. Thread Remover (1)(Figure 1) into bushing.
3. Install slide hammer (3) onto tool and remove bushing (2) using slide hammer
.
