Select Shaft - Removal

REMOVAL










1. Disassemble transaxle.
2. With the transaxle disassembled, remove the select shaft seal.

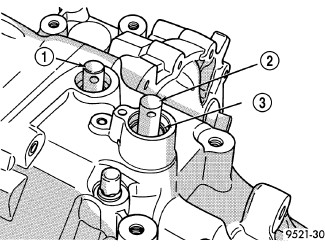

3. Using snap-ring pliers, remove the snap ring (3)(Figure 1) at the select shaft bore.
4. Push the select shaft (2) in the case and remove the select assembly.
