Output Bearing And Race - Installation

INSTALLATION

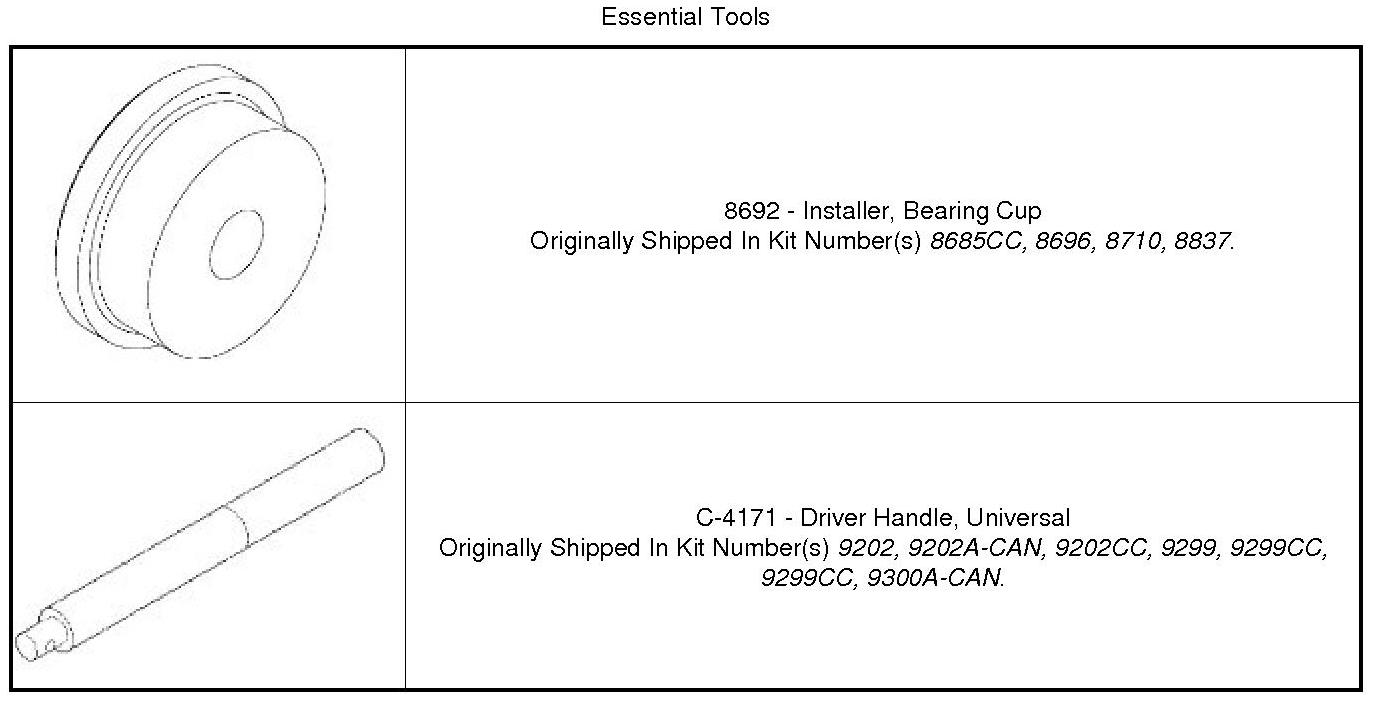

Special Tools:















NOTE: Properly install race with tabs on lock feature.

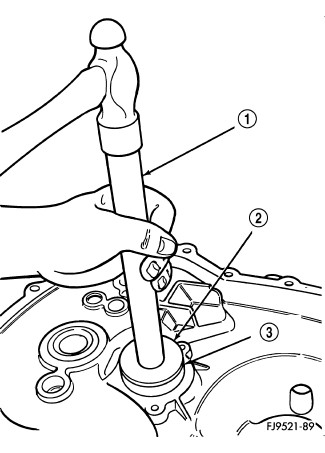

1. Line up output bearing (3)(Figure 1) to bore.
2. Insert tool Installer (2) with Handle (1) onto output bearing. Tap bearing into bore. Verify that the larger diameter of the cage is facing outward. Position bearing retaining strap. Tighten bolts to 12 Nm (105 in. lbs.).
