Input Bearing And Race - Installation

INSTALLATION

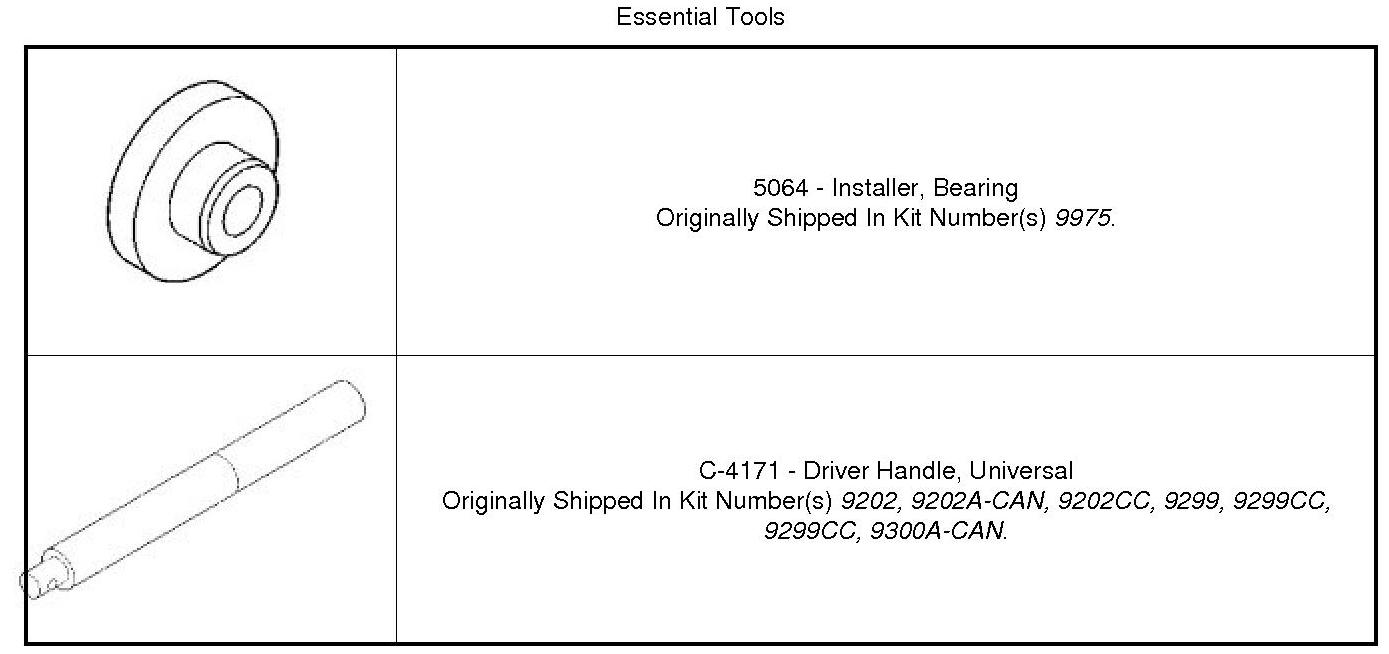

Special Tools:










1. Apply coating of Loctite(R) sealant on bearing outer diameter. Position sleeve and bearing assembly at input bearing bore.

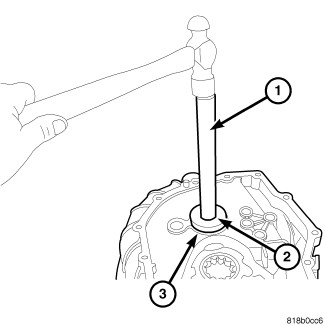

2. Using Installer (2) and Handle (1) install input bearing (3) into bore until it is fully seated.
