Differential Bearing Cups - Removal

REMOVAL

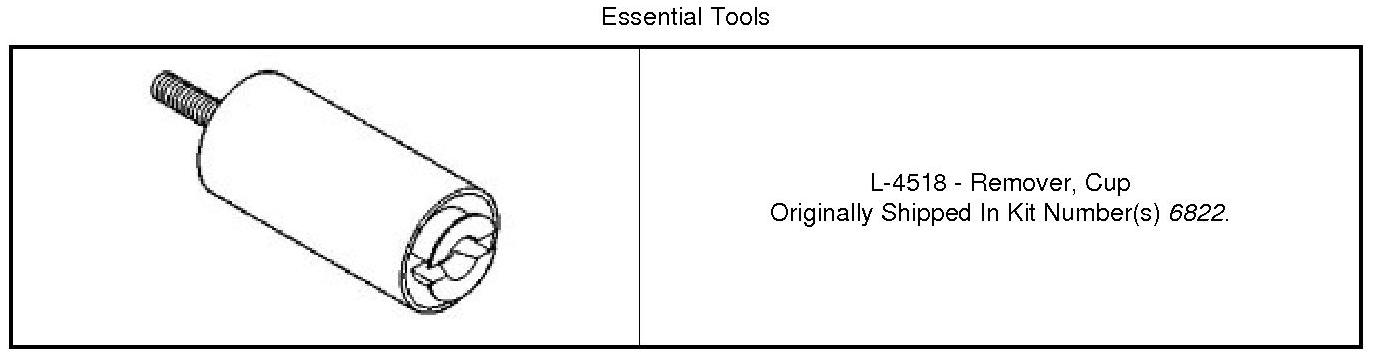

Special Tools:















1. Remove differential assembly from gear case (2)(Figure 1) using the procedure outlined.

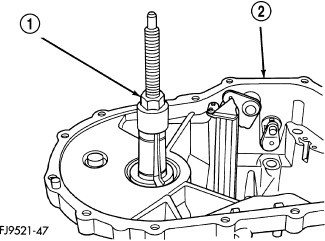

2. Install Remover (1) into the differential bearing cup.

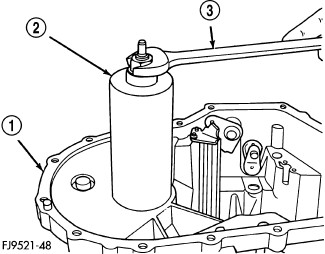

3. Install the tool cup (2)(Figure 2) over the tool.
4. Tighten the tool until the race is removed from the case.
