Axle Drive Shaft Seal - Removal
REMOVAL
1. Remove axle shaft. Half Shaft - Removal

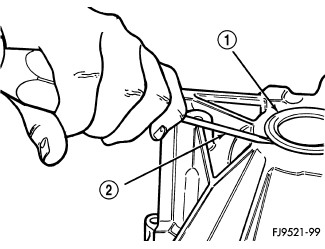

2. Insert a flat-blade pry tool (2)(Figure 1) at outer edge of axle shaft seal (1).
3. Tap on the pry tool (2) with a small hammer and remove axle shaft seal (1).
REMOVAL
1. Remove axle shaft. Half Shaft - Removal
2. Insert a flat-blade pry tool (2)(Figure 1) at outer edge of axle shaft seal (1).
3. Tap on the pry tool (2) with a small hammer and remove axle shaft seal (1).
