Transmission Oil Cooler - Installation

INSTALLATION






CAUTION: Apply CVT fluid on the seal part when installing the CVT fluid filter.

1. Install the CVT fluid filter (1) into the transaxle case.






CAUTION: Do not re-use the o-ring. Apply CVT fluid when installing the o-ring.

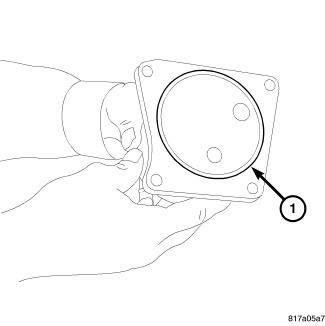

2. Install the new o-ring (1) onto the CVT fluid filter.





3. Install the CVT fluid cooler onto the transaxle case.
4. Install and tighten the mounting bolts to 4 Nm (37 in.lbs.).
5. Install the coolant lines (1) at the cooler.
6. Install the transmission lines (2) at the cooler (3).
7. Install the left front splash shield.
8. Install the left front tire.
9. Lower the hoist.
10. Top off coolant Service and Repair.
11. Top off transmission fluid CVT Automatic - Transmission Fill.
