Left Axle Drive Shaft Seal - Installation






INSTALLATION

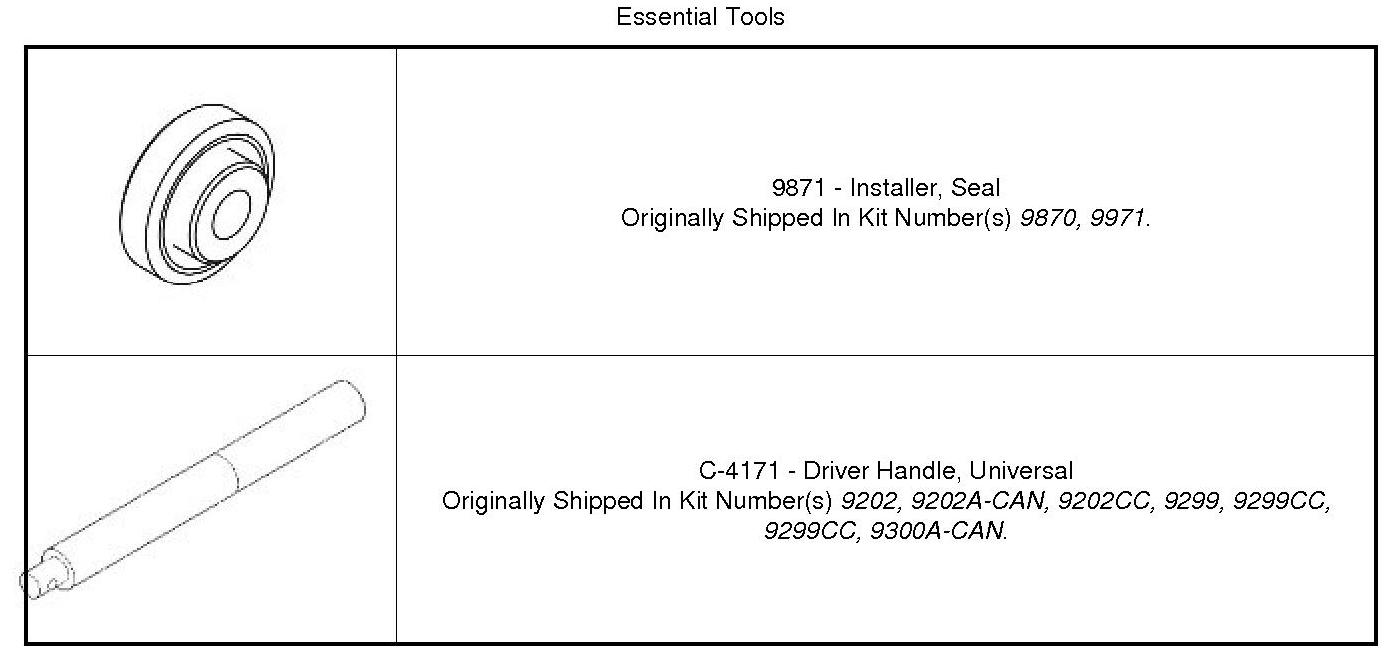

Special Tools:

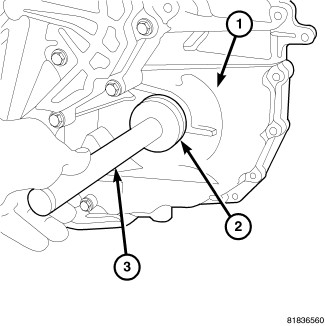

1. Install the left side differential oil seal using Installer (2) and Handle (3).
2. Install halfshaft Half Shaft - Installation.
3. Road test vehicle and inspect for leaks.
