Starter

STANDARD PROCEDURE

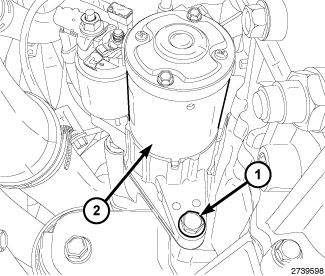

1. Install the lower starter mounting bolt (1) and remove the starter (2).





2. Install the upper starter mounting bolt.

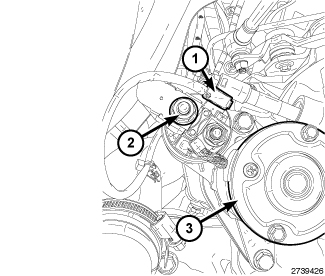

3. Connect the electrical connector (1) and the B+ cable (2) from the starter (3).

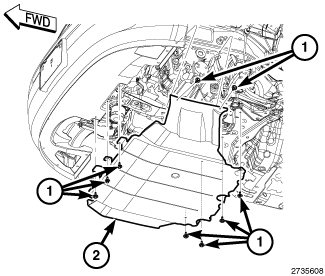

4. If equipped, install the belly pan (2).
5. Connect the negative battery cable.
