Owner's Manual

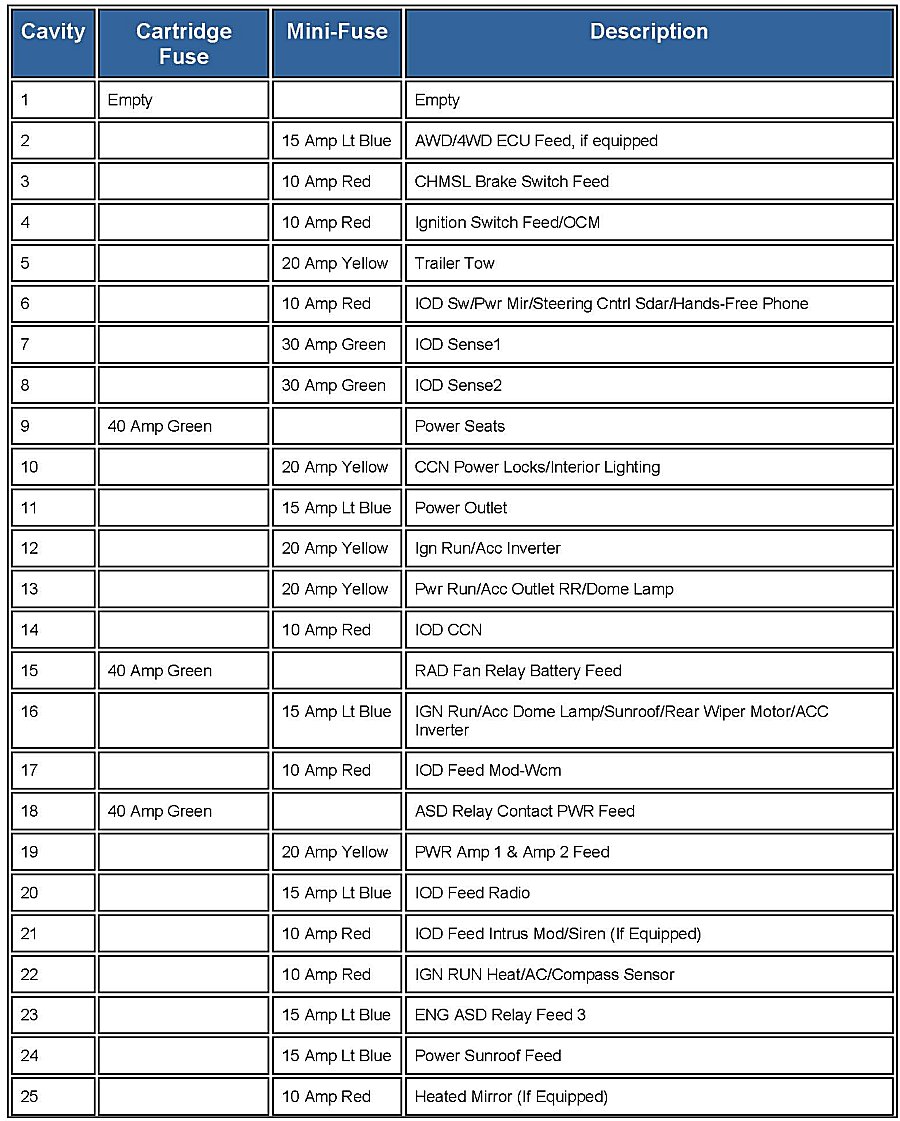

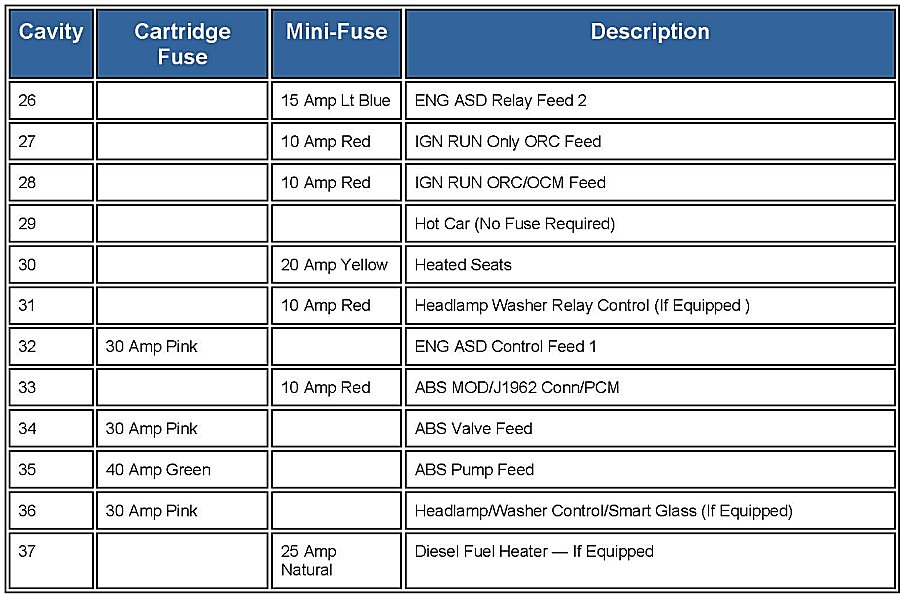

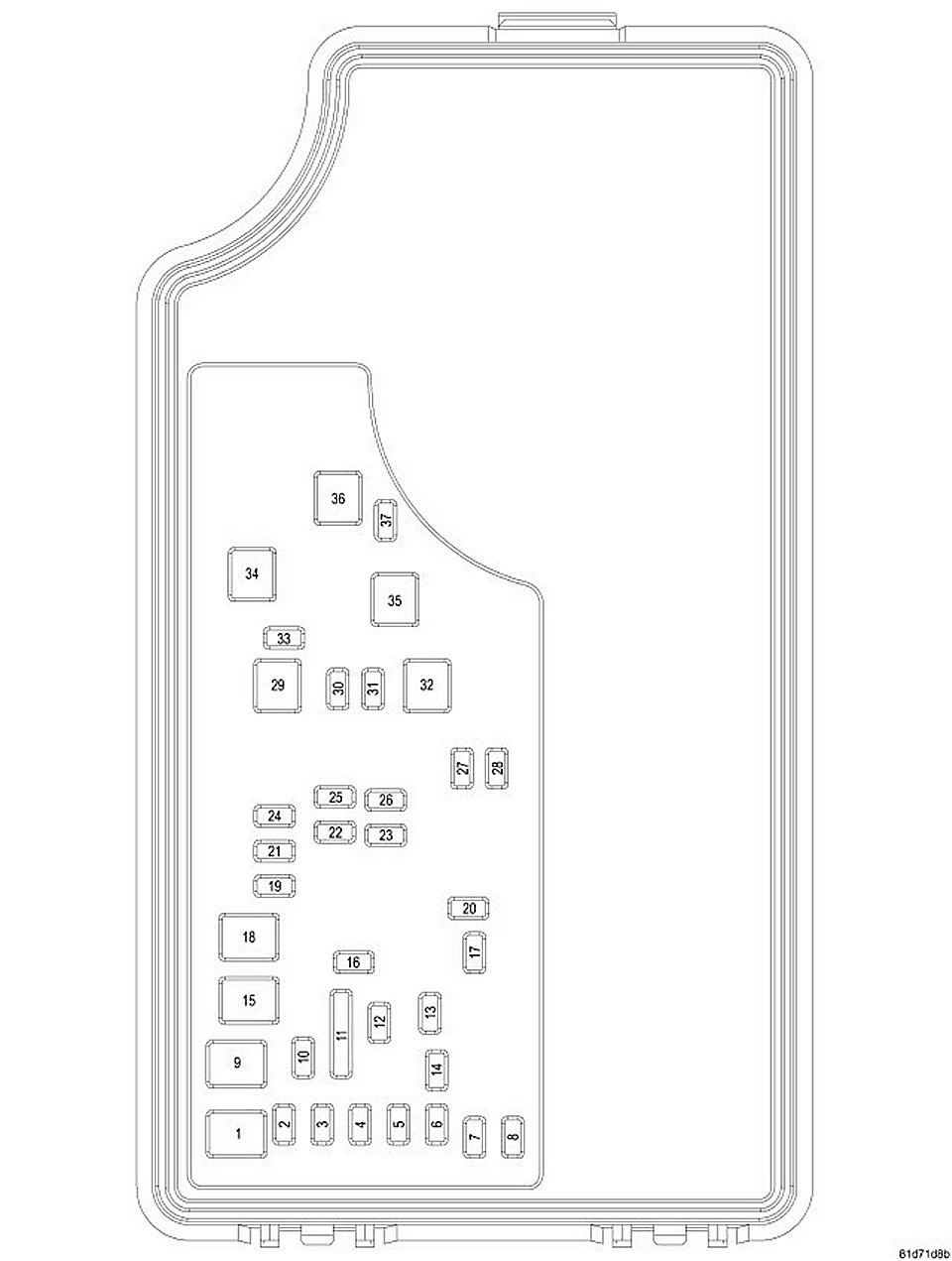

Totally Integrated Power Module (TIPM) is located in the engine compartment near the air cleaner assembly.
