Installation

INSTALLATION





1. Install fuel filler tube. Connect fuel filler tube hose to fuel tank neck and tighten clamp to 4 Nm (35 in. lbs.).

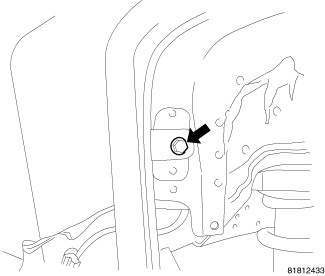

2. Install fuel filler tube mounting screw and tighten to 9 Nm (79.5 in. lbs.).

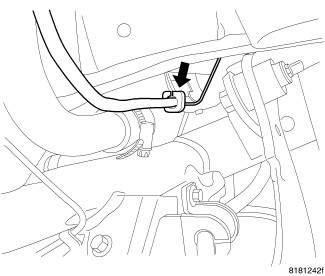

3. Connect filler tube vent line.

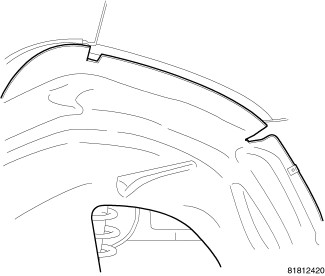

4. Install the inner splash shield.
5. Install rear tire.
6. Lower vehicle.
7. Install fuel filler tube cap.
8. Install the negative battery cable.
9. Install the air cleaner lid and makeup air hose.
