Installation

INSTALLATION

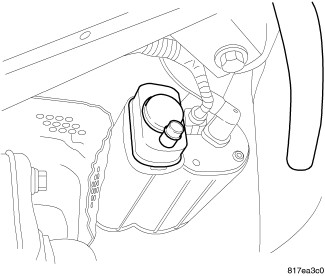

1. Install canister and bracket.





2. Connect filter hose to ESIM.





3. Connect vapor hose.





4. Make sure locking tab on hose connector locks in place.





5. Connect electrical connector to ESIM module.
6. Lower vehicle.
7. Connect negative battery cable.
