Center Mounted Brake Lamp - Installation






INSTALLATION

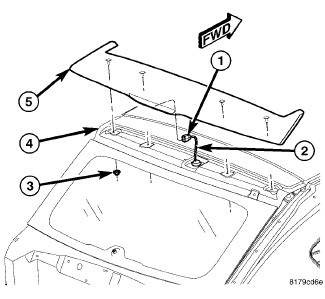

1. Place CHMSL onto rear spoiler.
2. Install the two mounting screws to the CHMSL.
3. Install the rear spoiler Liftgate - Installation.
4. Connect the battery negative cable.
