With Flashlight Feature

BULB - WITH FLASHLIGHT FEATURE

NOTE: There are two types of cargo lamps available in this vehicle; one with and one without a removable flashlight feature.





1. Disconnect and isolate the battery negative cable.

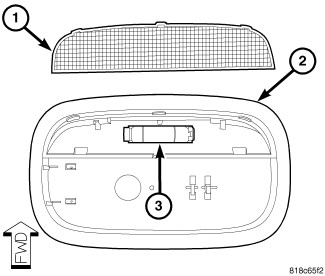

2. Remove the flashlight from the cargo lamp housing (2).
3. Pull downward on the straight edge of the lens (1) to unsnap it from the lamp housing, then disengage the curved edge of the lens from the housing.
4. Carefully unsnap the bulb (3) from the two bulb holders within the cargo lamp housing.
