Instrument Panel Center Bezel - Removal

REMOVAL

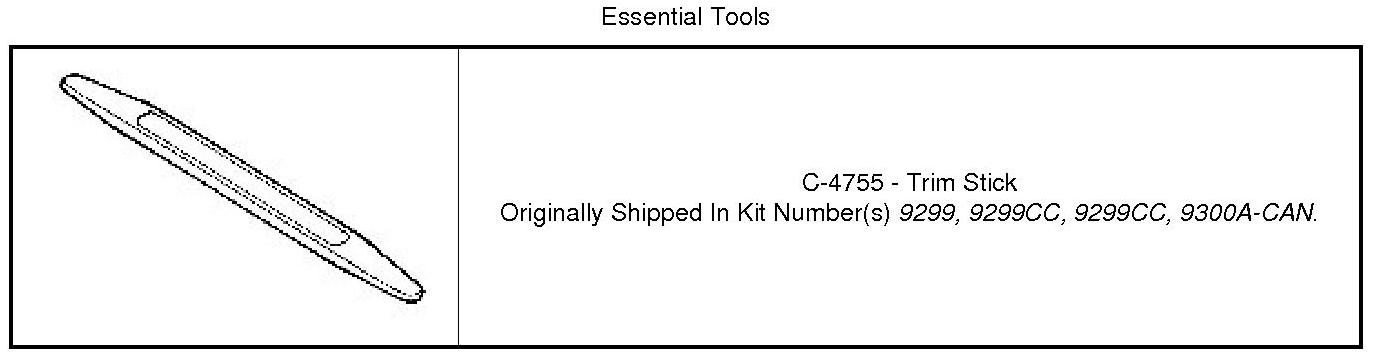

Special Tools:










1. Remove the front floor console. Center Console - Removal
2. Remove the storage bin screw.

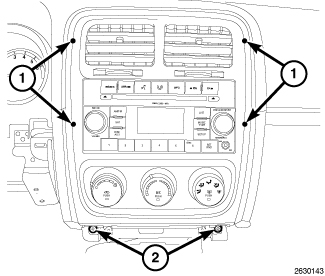

3. Remove the lower screws (2).
4. Using trim stick or equivalent, release the four retaining clips (1) and separate the center bezel.

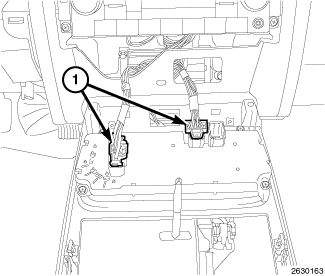

5. Disconnect the electrical connectors (1) from the HVAC control head.
6. Remove screws attaching HVAC control head to bezel.
7. Remove control head from bezel.
