Instrument Panel Bin - Removal

REMOVAL

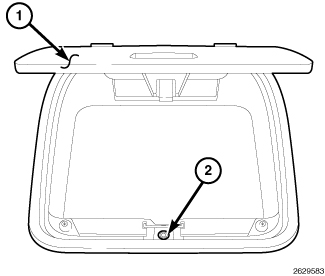

1. Open the storage bin cover (1) and remove the screw (2).
2. Pull up on the front of the bin and remove the bin from the instrument panel.
