Instrument Cluster Bezel - Removal

REMOVAL





1. Remove top pad cover. Instrument Panel Pad - Removal

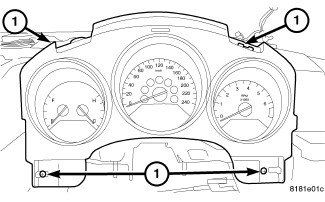

2. Remove cluster bezel screws (1).
3. Pull instrument cluster rearward to expose the four electrical connectors.
4. Disconnect electrical connectors.
5. Remove cluster assembly.





6. Remove screws (1) attaching cluster to bezel.
