Defroster Duct - Installation

INSTALLATION

NOTE: LHD model shown in illustrations. RHD model similar.

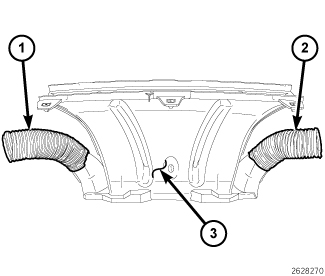

1. If required, install the demister hoses (1 and 2) onto the defroster duct (3).

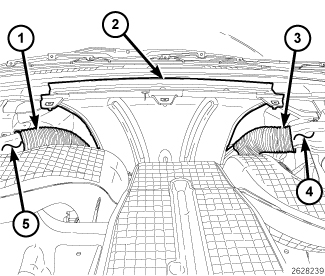

2. Position the defroster duct (2) and demister hoses (1 and 3) as an assembly to the instrument panel.
3. Connect the demister hoses to the demister ducts (4 and 5).

NOTE: To prevent air leaks and excessive noise during A/C-heater operation, make sure the defroster duct is properly positioned to the defroster outlet foam seal, located on top of the HVAC housing.

4. Install the instrument base panel Instrument Panel - Installation.
5. Install the instrument panel covers Instrument Panel Pad - Installation.
6. Reconnect the negative battery cable.
