Piston Oil Cooler Jet - Installation






INSTALLATION

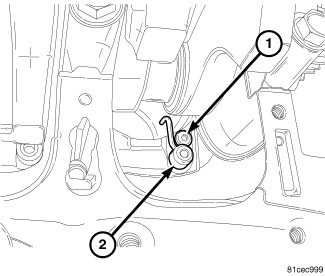

1. Install oil jet (2).
2. Install fastener (1) and tighten to 12 Nm (105 in.lbs.).
3. Install ladder frameLadder Frame - Installation.





4. Install oil pan (1)Engine Oil Pan - Installation.
5. Install engine Engine - Installation.
