Oil Pressure Switch - Removal

REMOVAL

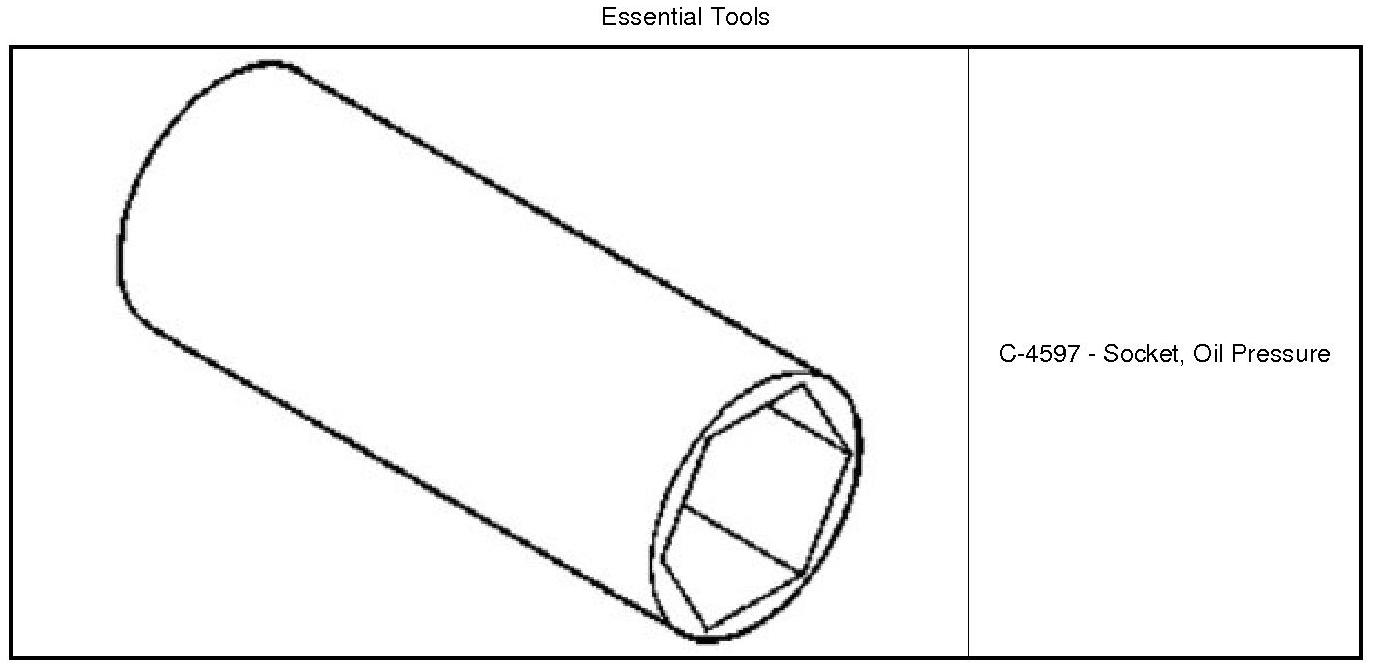

Special Tools:










1. Disconnect and isolate the negative battery cable.
2. Raise and support the vehicle Maintenance
3. Remove the splash shield from the right side frame rail Splash Shield - Removal
4. Remove the accessory drive belt Serpentine Accessory Drive Belt - Removal
5. Remove the three bolts (2) and reposition the A/C compressor (1).





6. Disconnect the oil pressure switch electrical connector.
7. Remove the oil pressure switch using oil pressure socket (1) or equivalent.
