Primary Thermostat

PRIMARY THERMOSTAT - GAS ENGINE










1. Partially drain THE cooling system Service and Repair.
2. Remove THE air filter housing Service and Repair

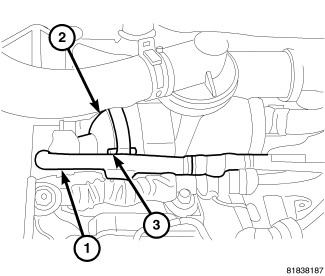

3. Disconnect the coolant hose (1) from the inlet housing (2).
4. Remove inlet housing bolts (3).
5. Remove the thermostat assembly, and clean the sealing surfaces.
