Cowl Panel Cover - Removal

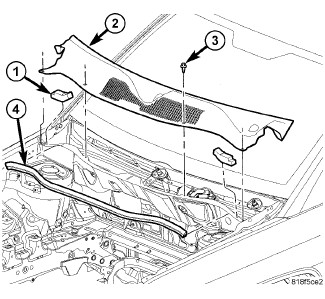

REMOVAL





1. Remove the wiper arms (2), Service and Repair.
2. Remove the hood seal (4).
3. Remove the screws (3) and remove the panel (2).
